CarOxygen

16mm 12V-24V Latching Metal Push Button Switch Ring Led Self Locking 1NO 1NC Waterproof ON/Off Black Shell Button with Pre-Wired Socket for 5/8’’ Mounting Hole (IP66,Green Light 2Pcs)

16mm 12V-24V Latching Metal Push Button Switch Ring Led Self Locking 1NO 1NC Waterproof ON/Off Black Shell Button with Pre-Wired Socket for 5/8’’ Mounting Hole (IP66,Green Light 2Pcs)

Regular price Rs. 399.00
Regular price Rs. 799.00 Sale price Rs. 399.00
Sale Sold out
Tax included. Shipping calculated at checkout.

About this item

  • Latching: Press the button-ON, Press the button again-OFF; Electrical life: 100, 000 times, Mechanical life: 500,000 cycles

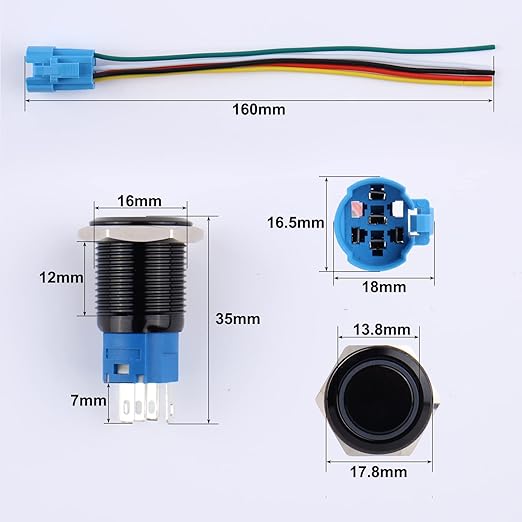

  • Mounting Hole: 16mm(5/8"); Structure: 1NO 1NC; LED Light: 5A, 12-24V, Halo Ring Green; LED life: 40,000 hours

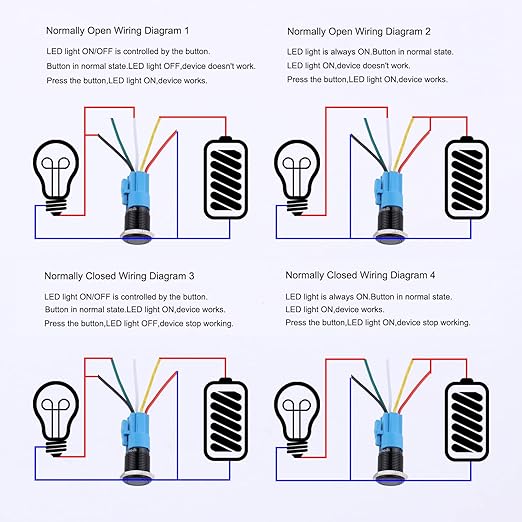

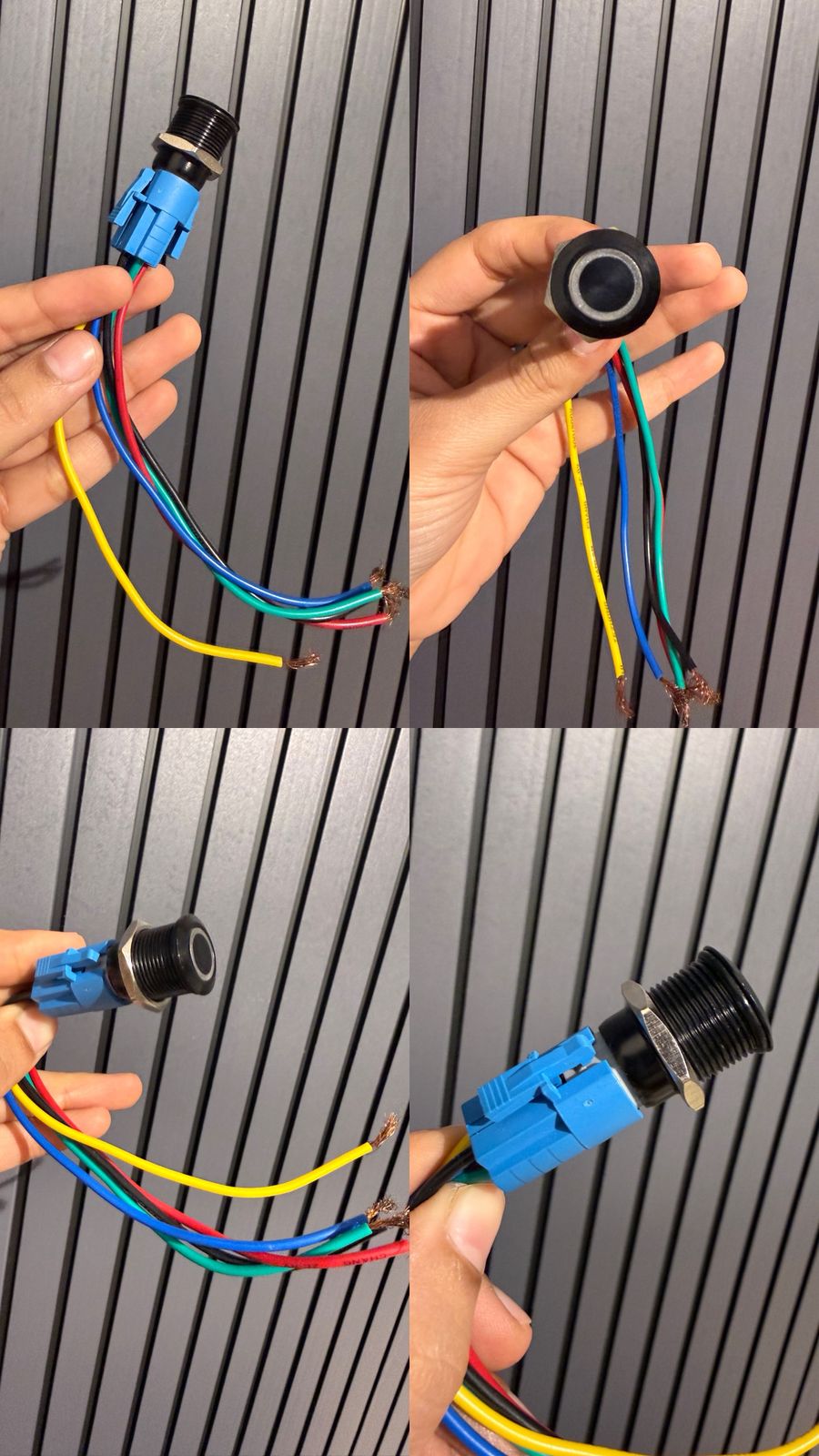

  • 4 wiring methods: Normal Open or Normal Closed; LED light can be always on, or illuminates when the device is working; 5 brass terminals are connected to the wire socket, No need to solder which makes your operation much easier
  • Protection Degree: IP66 Waterproof and dustproof; IK09 Anti-vandal rate. It can be used in wet or dusty environment; But Don’t immerse the button switch in water
  • Wide Applications: Suitable for car, computer, instrument and meter industry, door bell, home appliance etc.
